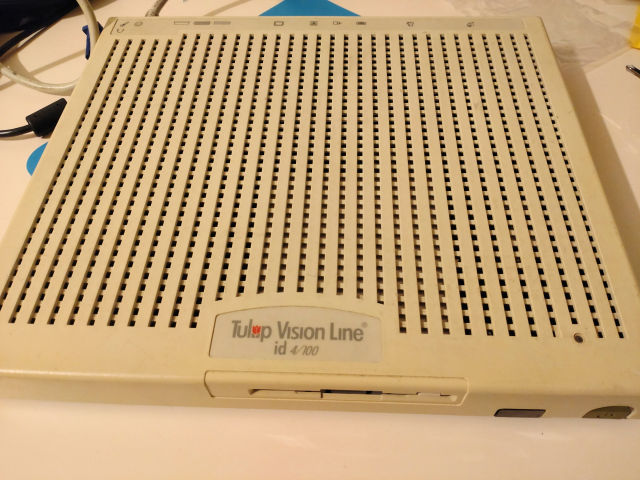

 | Tulip Vision Line IDeal
|
|---|
ID 486/66 en 486/100, moederbord TC45:
System : PCA TC45 based on Intel DX2/66 and DX4/100 MHz
Chipset : Aries PCI and PC87308VUL Super I/O Sidewinder chip
Video : Cirrus Logic GD5434 Graphics Controller, 1Mb video memory onboard, expandable up to 2Mb
Upgrading : Pentium Overdrive processor
Memory : Expandable up to 64Mb with 32/36-bit 70ns DRAM SIMMs, 256Kb second level cache (standard onboard)
Power Supply : TCX24 40W external (UP3043K-2, 100-250V, 50-60Hz, output = 5V/6A,12V/0.8A)
Cabinet : IDeal (ID) cabinet code = TE22
Slots : 2 PCMCIA slots for 4 type I or II cards or two type III cards, PC-Card controller 82092AA (PPEC)
Interfaces : 1 bi-dir parallel port (ECP support), 1 serial port (16550 compatible), Ethernet/UTP interface, ISA-bus implementation, Dual Channel 32-bit Enhanced IDE controller, PCI-bus implementation, CT2504C Vibra Audio interface (optional), IrDA Communication port
ID 5/100, 5/120 and 5/133, moederbord TC46:
System : PCA TC46 based on Intel Pentium Processor 100/120/133MHz
Chipset : Opti Viper/M and PC87308VUL Super I/O Sidewinder chip
Video : Cirrus Logic GD5436 Graphics Controller, PCI-bus implementation, 1Mb video memory onboard, expandable up to 2Mb
Upgrading : Pentium Overdrive processor
Memory : Expandable up to 256Mb with 32/36-bit 70ns EDO RAM SIMMs, 256Kb second level cache (standard onboard)
Power Supply : TCX33 48W external (UP3043C 100-250V, 50-60Hz, output =16.7V, 2.6A)
Cabinet : IDeal (ID) cabinet code = TE22
Slots : 2 dual PCMCIA slots for 2 type I or II cards or 1 type III card, PC-Card controller 82092AA (PPEC)
Interfaces : bi-directional parallel port (ECP support), serial port (16550 compatible), IrDA Interface (up to 4Mbit/sec), Ethernet/UTP interface, PCI-bus implementation, Enhanced IDE controller, PCI-bus implementation
